Children Playground Outdoor Equipment

We are manufacturers and suppliers of children playground and outdoor equipment. We’re ready because play is our mission and because we believe the world Needs Children Playground Outdoor Equipment.
Play maintains health and fitness. it enhances learning and creativity. Play connects generations and builds community the world over.
That’s why we push our selves to create products that provide the very highest quality play experiences. I invite you to explore all the equipments in this catalogue and please take a look at our exciting new product called OGFE (Outdoor Gym Fitness Equipments).

MATERIALS : All materials are of first grade quality as per specified standards. The company follows all the procedures of ISO 9001:2015 standards.

a: G.I. PIPES: The G.I. ‘B’ Class Medium Pipes used are approved

b: M.S. ANGLE: All M.S. The angle is approved standard, sufficient strength to hold all kinds of assembly of Playground Equipments wherever it applies.

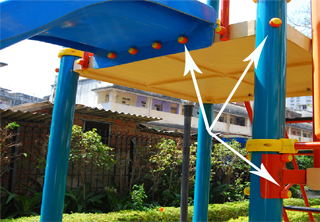

c: NUT BOLTS & OTHER FASTENERS: Galvanized / SS iron nuts, bolts, and other fasteners are used for all moving and non-moving type of play equipments. All the Fasteners used are standard ones. All bolts & nuts are totally galvanized & covered with high quality nylon caps.

Outdoor Equipment

JOINTING : The joining is done by Metal Inert Gas (MIG) welding process where Carbon Dioxide (C02) used as the inert gas. The welded joints are ground with an electric surface grinder and finally the polished ground surfaces are then finished with epoxy sealant of m-seal brand. Utmost care is taken while welding to ensure that there won't be any undercuts or foreign particles entrapment or hydrogen embrittlement in the welded joints.

Playground Equipment

BENDING : During bending operation it is ensured that there are not any deformations in the diameter of the pipe more than 1.2 times the DIA. This is achieved by use of slip gauges, and the usage of special bending dies suitable for different diameters. All the bending is done by using mechanical bending machine, to give the perfect curves. Other non-standard and complicated curves are formed manually by using special pipe holding fixtures which are capable to give a wide range of shapes to the pipes.

Children Equipment

DRILLING : All the holes are drilled by the use of specially designed hardened drill fixtures to ensure repeatability and interchangeability of the components.

CUTTING : All the cuttings are done by the use of bend saw machine and cross cutting machines to ensure linearity in cutting and exact length.

PLATING : All the plated parts are of hot dipped galvanized or electro galvanized which are passivated and thickness of all plating is ensured to be a minimum of 10 microns.

F.R.P MATERIAL : All the FRP (Fiberglass reinforced Plastics material) are processed by the hand laid process which considered to be the best of its type in the wherein the process as follows:

A : After the preparation of the mould done a layer of gel coat applied which of I.S.O. Which duly mixed with U.V stabilized pigments to give the required color to the product.

B : Then a coat of G.P resin applied above the surface of the gel coat after it becomes tack free.

C : The constitutive layers of C.S.M (chopped strand mat), glass Fiber is laid down along with resin to the required extend to build up the required thickness in sandwich pattern.

D : The back side coating of the resin done to give a smooth finish.

E : The moulds are kept open to dry for a specified duration. The procedure strengthened the F.R.P

F : After the mould completely cured for the specified duration the FRP removed from the mould . Then all the corners and edges of it are ground to make them smooth and harmless from the strands of the glass wool.


FIBERGLASS REINFORCED PLASTIC : All FRP products are made of top quality polyester resin of reputed brands and virgin quality standard glass made of reputed brand only. The molding of FRP done by contact molding & has a minimum tensile strength of 60 MPA. The FRP products are all self pigmented, food grade materials with U.V. Stabilizers.


PAINTING PROCESS : All the items that are to be painted are first made free from Any burr and welding spots are ground to finish and cleaned. With degusting chemical solutions and phosphating done, then all the welded joints are applied with epoxy sealant to avoid any Exposure to atmosphere so that further corrosion does not take place.

The powder sprayed onto the substrate by means of static electric gun at 8000 volts, ensure uniform powder thickness all over. The thickness maintained a minimum of 60 to 80 microns. (Dry film thickness). The coated product then cured in oven at 200 degree Celsius for twenty minutes.


INSPECTION : All the raw materials and parts are inspected for any defects like scratches, dents, cracks and similar shortcomings. The products, while working on them are checked by the skilled operators themselves and by the supervisors for matching ability and conformance to the desired dimensions. The Company carries out 100% inspection of the final goods produced for the confirmation with specifications. All the parts assemblies are checked for their matching with corresponding parts and their interchangeability.


PACKING : All the Children Equipments manufactured, painted and tested for quality are then packed to make them ready for dispatch. The packing materials generally used are of HDP type or it called as Bubble packing. The packing facility provides the shock absorbing capacity and damage proofing to the packed product. Many times sample plastic packing is used to wrap and tie the product in order to provide dirt and scratch proofing.


FABRICATION : All steel components are welded by electric arc welding using the best quality Welding rods confirming to: 814. All Welded joints are properly rounded & coated with an epoxy sealant for rust resistance. All sheet metal components are galvanized for rust resistance.
